nemo EDGE
the next generation
of wind turbine inspection
The new NEMO EDGE empowers operators to detect micro-defects
Discover EDGE
Redefining what’s possible in blade inspection.

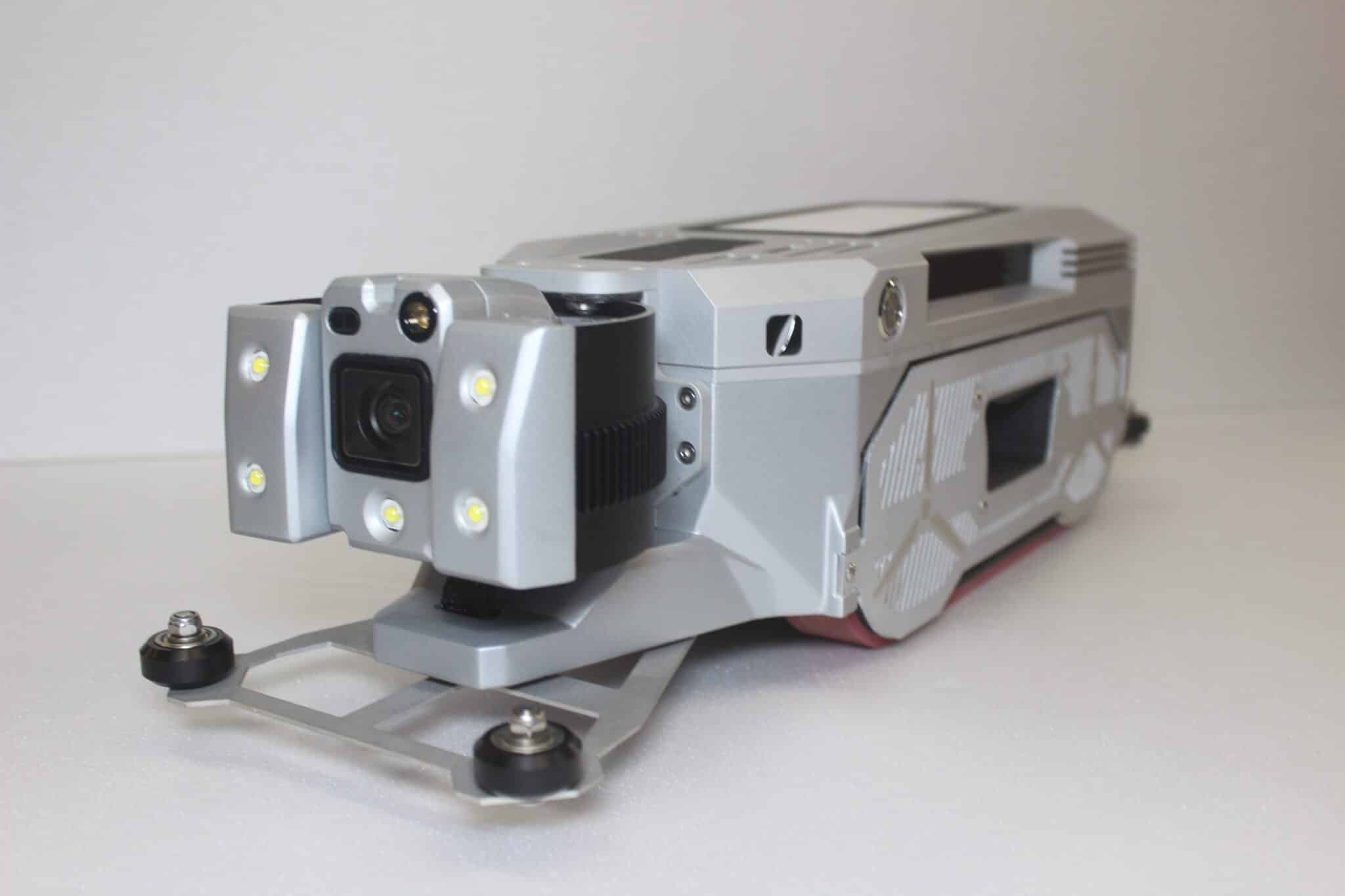

Meet EDGE, the compact and agile robot that goes where humans can’t. With the ability to reach up to 75% of the blade’s interior, it opens a new frontier in precision, safety, and insight.
Every detail comes to life through its high-resolution cameras and powerful illumination system, revealing even the smallest imperfections with crystal clarity.
Driven by intuitive, purpose-built software, EDGE turns complex inspections into a seamless experience — empowering you to see more, understand faster, and act withconfidence.
EDGE isn’t just a tool — it’s a new perspective on inspection.
Design and Functionality
Compact Power
Access the narrowest turbine blade interiors with only 135 mm width. Effortless navigation in confined spaces.
Ultra-Sharp Precision
Advanced inspection software for real-time analysis and faster decisions.
Continuous Operation
Wired system for unlimited autonomy and uninterrupted inspection sessions.
Unmatched Accuracy
Integrated laser meter ensures pinpoint measurement and repeatable data consistency.
AI-Driven Precision
AI analysis for greater speed and efficiency.
Define what matters
Laser make highlights key inspection points instantly.
Key Specifications
Below are the key features that make this product an outstanding option, offering a well-balanced combination of quality, functionality, and design intended to meet the needs of even the most demanding users.
Specifications
Size: 500 x 135 x 152 mm (L x W x H) Weight: 5.1 kg
Maximum speed: 0,6 m/s Climbing angle: 30º
Processor: Nvidia Jetson Gimbal Yaw range: ±90º
Gimbal Tilt range: -25º to +90º Sensor: Sony Autofocus
Image Resolution: 4056 x 3040
EDGE Key Specifications
Size: 500 x 135 x 152 mm (L x W x H) Weight: 5.1 kg
Maximum speed: 0,6 m/s Climbing angle: 30º
Processor: Nvidia Jetson Gimbal Yaw range: ±90º
Gimbal Tilt range: -25º to +90º Sensor: Sony Autofocus
Image Resolution: 4056 x 3040
Operating Temp => -25℃～60℃
Storage Temp => -30℃～70℃
Dimension (W x H x D) => 277 x 182 x 21.5 mm
Weight => 1.45 KG
- Battery Life => 10 hours
Hardware & Software
Power and precision, perfectly synchronized.
At the heart of EDGE lies a robust base station powered by Microsoft Surface Pro 13″, running on Windows 11 Pro for seamless performance and reliability.
Every inspection is brought to life in Full HD 1080p resolution, delivering stunning clarity in every frame.
With a battery life of up to 4 hours, EDGE keeps going as long as you do — ensuring uninterrupted operation in the field.
Its core is the Nemo Rover App, a control platform designed for intuitive command and total confidence — so every mission feels effortless, from launch to completion.
Hardw & Softw keys
12» WXGA (2000×1200) 450 nits IPS LCD
Intel® core 12th i5-1235U/i7-1255U CPU
GPS+Glonass
5MP Front and 8MP Rear Camera
5 and 10 points touch PCAP touch screen
Built-in 10000mAh battery, 7,6V
IP67 Compliant, Drop 1.2m
Windows 11
TPM 2.0
12'' WXGA (2000x1200) 450 nits IPS LCD
Intel® core 12th i5-1235U/i7-1255U CPU
GPS+Glonass
5MP Front and 8MP Rear Camera
5 and 10 points touch PCAP touch screen
Built-in 10000mAh battery, 7,6V
IP67 Compliant, Drop 1.2m
Windows 11
TPM 2.0
Accesories
Cable Measuring System
We offer a wide range of customizable configurations that allow you to further enhance the performance and versatility of your equipment.
